Contents
• Magnetic Drill Machine with it's accessories
• WD-40 Spray, Coolant spray
• CAMtOOL Expanding device: M10, M14, M19, M24, M29
• Drill: 9mm, Reamer: 10mm
• TCT Cutters 14mm, 19mm, 24mm, 29mm

Operation
• If a small projection of broken fastener is there above the surface then make it a bit smooth and plain using an angle grinder.
• Apply WD-40 or equivalent penetrant spray over the trapped fastener and let it sit for 30 minutes for proper penetration.

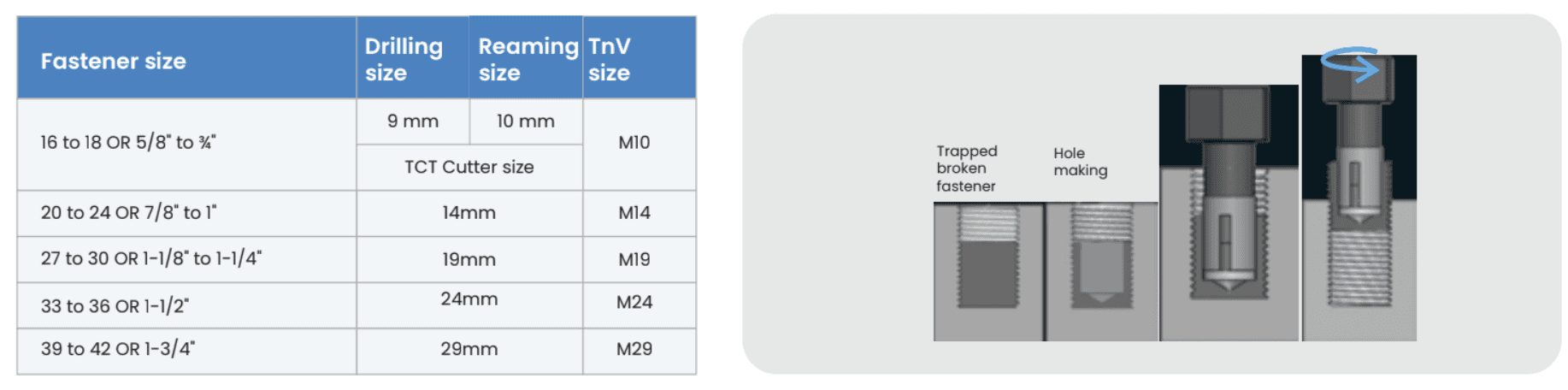

• Mount the magnetic drilling machine in such a way that the TCT cutter selected as per following chart and fixed in the spindle could be positioned at the center of the broken fastener which is to be removed
Warning: While doing horizontal or upside down drilling make sure that the magnetic drill and the object is fastened by the Safety Belt provided in the set.

• Locate the TCT cutter at the center of the broken fastener and switch on the magnet switch.
• Select the slowest speed and start the drilling operation gradually at the slowest speed with spraying/pouring the coolant. The speed could be slightly increased after a continuous impression of the cutter gets marked on the uneven surface of the broken fastener.
Warning: Never increase the speed beyond the first two markings of the speed control switch.
• When drilling up to the bottom end of the broken fastener is complete take the cutter upward slowly and switch off the motor first then switch off the magnet and keep aside the machine.
NOTE: Since TCT cutters start from 12 mm an arrangement for 9 mm Twist drill and 10 mm Reamer is there in this set for making 10 mm hole. (Refer above chart)
• Insert the selected TnV Specialized tool device in the hole as shown in the figure. Rotate counterclockwise for RH fastener and clockwise for H fastener. The trapped piece of bolt/stud will come out along with the TnV Specialized tool.
• The core piece which may get blocked inside the TCT cutter can be easily removed from the TCT cutter by pushing it from the other side of the TCT cutter using a pin and hammer.
